ZWmech Modules - ארגז הכלים לתכנון הנדסי
ZWmech הינה תוכנה עזר לתחומי תכנון ושרטוט של מערכות מיזוג אויר, צנרת, קונסטרוקצית מתכת וחלקים מכנים.
ניתן לתכנן בתלת מימד או לשרטט בדו מימד. התכנון והשרטוט עפ"י סטנדרטים הנדסיים. השימוש ב-ZWmech חוסך זמן רב בשרטוט. מאפשרת רשימות חלקים BOM
התוכנה פועלת כאפליקציה בתוך תוכנת ZWCAD Pro ומאפשרת שימוש בכלים אוטומטים תוך אפשרות לשרטוט רגיל.
לתוכנה 4 חלקים בהתאם לתחום המקצועי. ניתן לקנות כל חלק בנפרד או את כל הארבעה בהנחה משמעותית במחיר
|
|

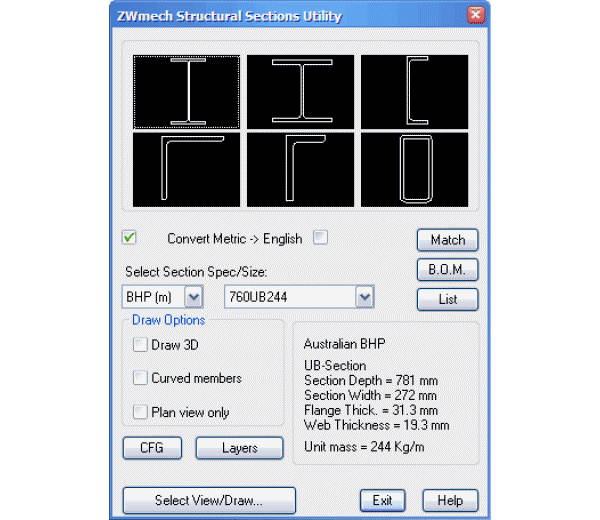

structural קונסטרוקצית מתכת
- Standard Steel Shapes, Structural Stairs Utility, Structural Ladders Utility, Structural Hand Railing,
- Structural Bracing, Beam to Beam Connections, Beam to Column Connections,Structural Welded Frames,
- Beam Design Module, Welding Symbols
|
חזרה להתחלה |

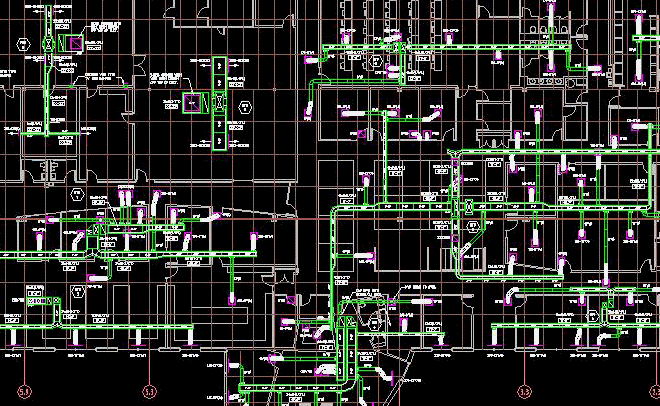

Ducting תעלות מיזוג אויר
- Duct shape options include rectangular, round and flat oval.
- Features include: auto-BOM, auto-labeling, flat sheet development....
- Several Duct and Duct fittings included: Duct bends, transitions, tees & wyes, offsets, branches, dampers, diffusers, flexible duct, grills,
- build-in & customer defined symbols and many accessories...
|
חזרה להתחלה |

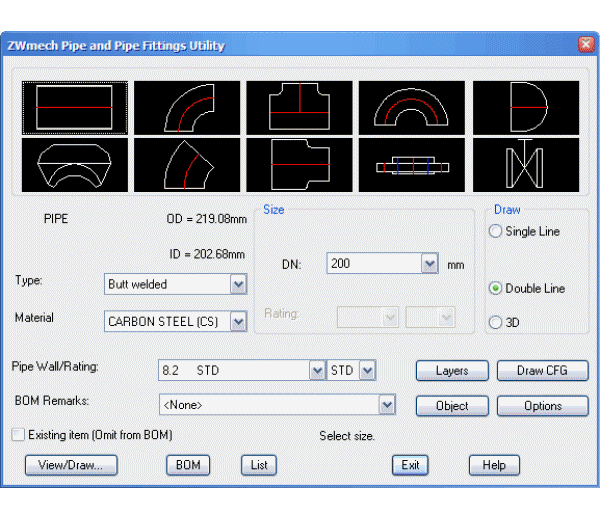

Piping צנרת
- Orthogonal Pipe, Fittings & Valves. different Types of Pipe, fittings, Valves & Flanges
- Isometric Piping Utility generates pipe isometric diagrams and pipe spools drawings, Iso Piping BOM.
- P&ID module to build and maintain a library of symbols to be used in Pipe and Instrumentation Diagram (P&ID) drawings.
- Plumbing Symbols, Vassels, Centrifugal Pumps, Pipe Hangers & Clamps and more
|
חזרה להתחלה |

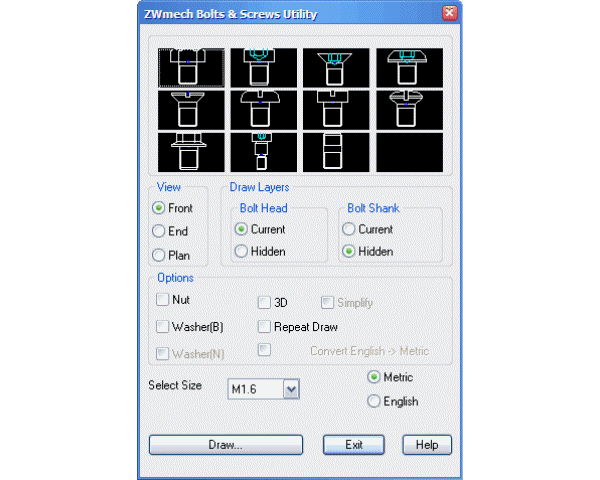

Mechanical חלקים מכנים
- Fasteners Modul (Bolts and Screws, Bolt Holes Nuts...), Bearings & Bearing Housings
- Bearings & Bearing Housings, Auto Shaft Generator Draw, Keys & Key Ways and more
- Material Handling ( Conveyor Rolls & Idlers Utility, Conveyor Chains Links & Sprockets...)
|
